Name：high-speed winding machine
Model：YF(MH)
Category： High Speed Winding Machine Series
Product details
Function features:
High speed winding machine is applicable for the winding various raw material threads such as sewing thread,embroidery thread,nylon thread,fishing net thread etc. It has the structures such as the independent computer control of each spindle,variable frequency speed govemor,grooved drum thread feeder,electromagnetic tension control,oil pump cyclic oiling device etc.It features as good looking,high efficiency,easy operation,safety and reliability and so on.
The panel parameter table of the high speed winding machin：
參數號 Parameter No. | 名稱 Name | 范圍 Range |
0 | 密碼Password | 0000～99999 |
| 設定參數值 Setting parameter value |
|
1 | 滿筒長度 Full bobbin length | 0～60000米(m) |
2 | 卷取線速度 Thread winding speed | 200～1000米/分鐘(m/min) |
4 | 油輪速比 Oil wheel speed ratio | 30～2000 |
10 | 起始張力 Starting tension | 0～100％ |
11 | 終止張力 Ending tension | 0～100％ |
12 | 探絲器狀態 Yarn detector condition | 0.0～25.5秒 (s) |
13 | 空筒位置確認 Empty bobbin position confirmation | 電腦檢測值Computer test value |
14 | 定位位置確認 Positioning confirmation | 電腦檢測值Computer test value |
23 | 長度校正系數 Length correction coefficient | 0.80～1.20 |

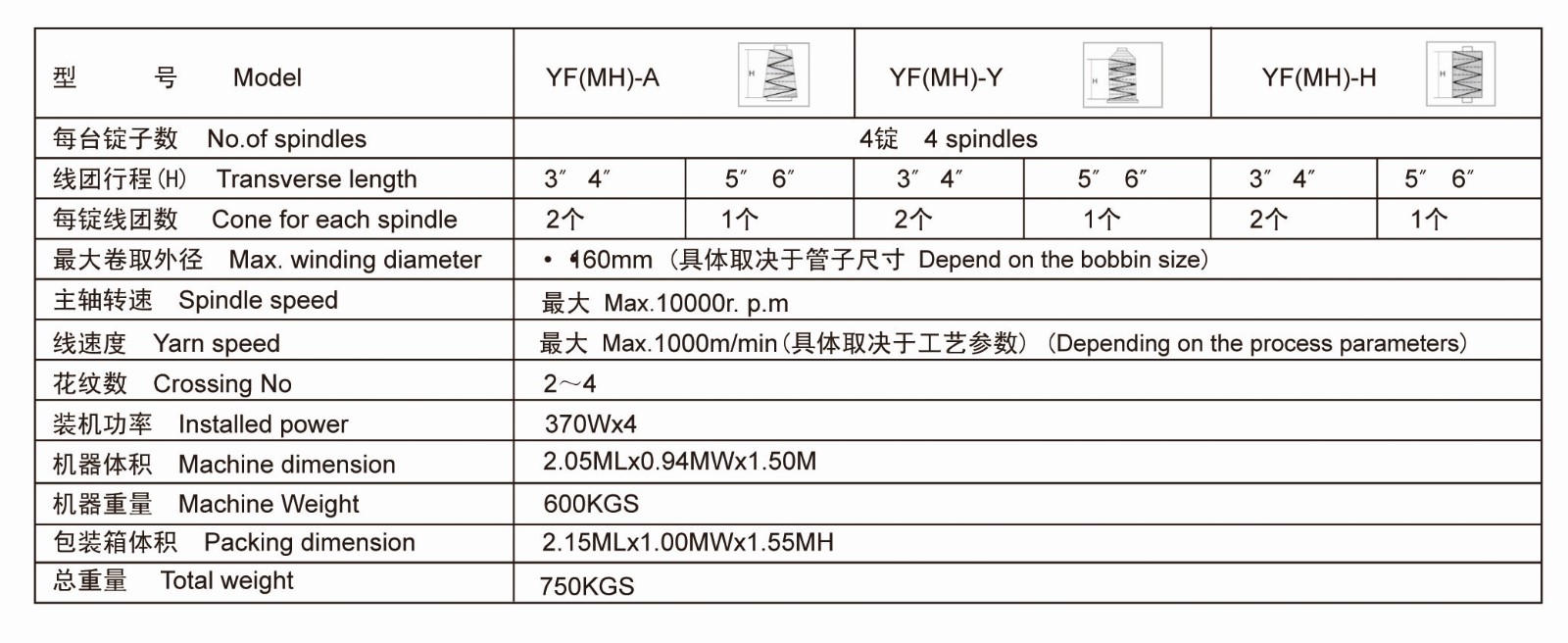

The major parameter table of the high speed winding machine：
